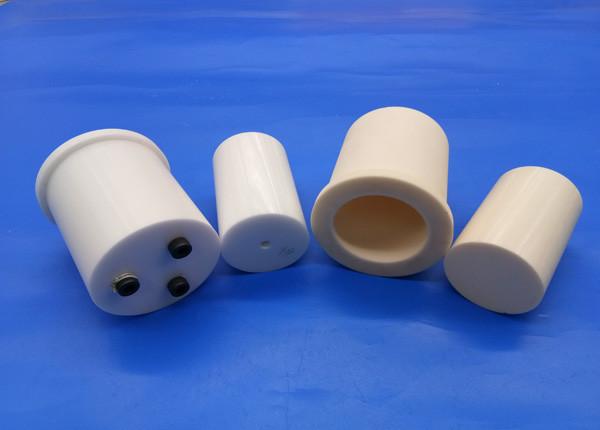

High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection
Pump
Product Description
Advantages of Zirconia Ceramic Injection Pump:
1. Refractory.
2. Long Service Life.
3. Good Polished Surface.
4. Environmental and Healthy.
5. Superior Mechanical Strength.
6. High Corrosion and Wear Resistance.
7. Good Insulation Performance Precision.
8. High Temperature and Pressure Resistance.
9. High Purity Zirconia and Alumina Ceramic Material.
- High hardness, long service life, not easy to break and wear
resistance.
- Non-conductive, anti-static, ceramic material itself with the
insulation of electricity and magnetism properties.
- Corrosion resistance, high temperature resistance, can be applied
to a specific environment, such as acid and alkali resistance.
The component of ceramic pump:
| Plunger shaft rod | Diameter (D:3-35mm) |
| Length (L:20-650mm) |
| Can be machining thread,polishing,connecting metal part |
| Sleeve pump body | Inside Diameter as small as 0.3 mm |
| Longth as long as 400mm, as short as 0.5mm |
| Inside Diameter tolerance we could make as fine as 0.002mm |
| Outside Diameter tolerance as fine as 0.001mm |
| Wall thickness:0.5-15mm |
| Pump head | Can be customized |
| Sealing rings | Can be customized |
| Metal parts | Can be customized |
Properties Sheet:
| Properties | Units | 95 Alumina | 99 Alumina | Zirconia |
| Density | ɡ / cm3 | 3.65 | 3.92 | 5.95 - 6.0 |
| Water Absorption | ％ | 0 | 0 | 0 |
| Coefficient of Thermal Expansion | 10-6 / K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young’s Mod | Gpa | 280 | 340 | 210 |
| Poisson’s Ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness | Mpa | 1400 | 1650 | 1300 - 1365 |
| Flexural Strength @ Room Temperature | Mpa | 280 | 310 | 950 |
| Flexural Strength @ 700℃ | Mpa | 220 | 230 | 210 |
| Compressive Strength@Room Temperature | Mpa | 2000 | 2200 | 2000 |
| Fracture Toughness | Mpa * m½ | 3.8 | 4.2 | 10 |
| Heat Conductivity @ Room Temperature | W / m * k | 18 - 25 | 26 - 30 | 2.0 - 2.2 |
| Electrical Resistivity @ Room Temperature | Ω*mm2 / m | ＞1015 | ＞1016 | ＞1015 |
| Max Application Temperature | ℃ | 1500 | 1750 | 1050 |
| Resistance to Acid Alkaline | / | High | High | High |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV / mm | 16 | 22 | / |
| Thermal Shock Resistance | Δ T ( ℃ ) | 220 | 180 - 200 | 282 - 350 |
| Tensile Strength @ 25℃ | Mpa | 200 | 248 | 252 |
Detailed Images
Related Products
Zirconia ceramic to metal car engine valve
High corrosion resistant zirconia ceramic crucible
View More
Products
Packaging and Shipping
Alumina ceramic machining parts will be packed in a bubble bag
individually, then separated by a foam, finally put in standard
export carton packing, or OEM packing.
Shipped by Express ( DHL, TNT, UPS, Fedex, EMS ), Air, or Sea transportation.
