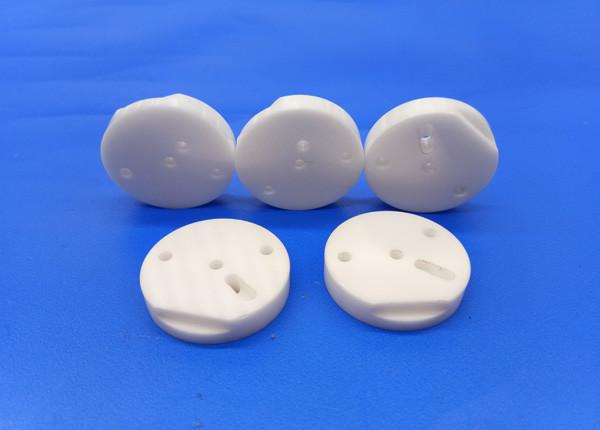

High precision machine components Zirconia ceramic insulating seals
ceramics insulator sealing ring
Product Description
Advantages of Zirconia ceramic insulating seals:
1. Refractory.
2. Self Lubricating.
3. Long Service Life.
4. Good Polished Surface.
5. Environmental and Healthy.
6. Superior Mechanical Strength.
7. High Corrosion and Wear Resistance.
8. Good Insulation Performance Precision.
9. High Temperature and Pressure Resistance.
10. High Purity Zirconia and Alumina Ceramic Material.
- High hardness, long service life, not easy to break and wear
resistance.
- Non-conductive, anti-static, ceramic material itself with the
insulation of electricity and magnetism properties.
- Corrosion resistance, high temperature resistance, can be applied
to a specific environment, such as acid and alkali resistance.
Properties Sheet:
| Properties | Units | 95 Alumina | 99 Alumina | Zirconia |
| Density | ɡ / cm3 | 3.65 | 3.92 | 5.95 - 6.0 |
| Water Absorption | ％ | 0 | 0 | 0 |
| Coefficient of Thermal Expansion | 10-6 / K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young’s Mod | Gpa | 280 | 340 | 210 |
| Poisson’s Ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness | Mpa | 1400 | 1650 | 1300 - 1365 |
| Flexural Strength @ Room Temperature | Mpa | 280 | 310 | 950 |
| Flexural Strength @ 700℃ | Mpa | 220 | 230 | 210 |
| Compressive Strength@Room Temperature | Mpa | 2000 | 2200 | 2000 |
| Fracture Toughness | Mpa * m½ | 3.8 | 4.2 | 10 |
| Heat Conductivity @ Room Temperature | W / m * k | 18 - 25 | 26 - 30 | 2.0 - 2.2 |
| Electrical Resistivity @ Room Temperature | Ω*mm2 / m | ＞1015 | ＞1016 | ＞1015 |
| Max Application Temperature | ℃ | 1500 | 1750 | 1050 |
| Resistance to Acid Alkaline | / | High | High | High |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV / mm | 16 | 22 | / |
| Thermal Shock Resistance | Δ T ( ℃ ) | 220 | 180 - 200 | 282 - 350 |
| Tensile Strength @ 25℃ | Mpa | 200 | 248 | 252 |
Detailed Images
Related Products
Precision Ceramic Components Zirconia Threaded Ceramic Cylinder /
Sleeve / Bushing
Zirconia Ceramic Pressure Washer / Power Washer / Flat washer for
Machine Parts
View More
Products
Packaging and Shipping
High hardness ceramic insulator sealing ring will be packed in a
bubble bag individually, then separated by a foam, finally put in
standard export carton packing, or OEM packing.
Shipped by Express ( DHL, TNT, UPS, Fedex, EMS ), Air, or Sea transportation.
Company information
Who Are We?
Mingrui has professional OEM experience in manufacturing industrial application ceramic parts for so many years. We can make the products according to your drawings, custom the size,
thickness and other parameters.
.
What Do We Do?
We have very advanced technologies in the production of zirconia and alumina ceramic nozzle, rod, ring, tube, shaft, plate,
sleeve, valve, plunger, bearing, and semiconductive ceramics etc.. They are applicable to Electrical, Appliance, Oil & Gas, Energy &
Power, Food & Medical, Agriculture, Aerospace,
even other High-end fields.
.
Our products with some certificates, such as , CE, TUV, etc..
Factory Show
Production Process Show
One-stop production, from the raw material ( powder ) to final
products, control the quality strickly of every production link.
