customized precision industrial ceramic injection molding machined zirconia ceramic parts

    Buy cheap customized precision industrial ceramic injection molding machined zirconia ceramic parts from wholesalers

    Buy cheap customized precision industrial ceramic injection molding machined zirconia ceramic parts from wholesalers
    • Buy cheap customized precision industrial ceramic injection molding machined zirconia ceramic parts from wholesalers
    • Buy cheap customized precision industrial ceramic injection molding machined zirconia ceramic parts from wholesalers
    • Buy cheap customized precision industrial ceramic injection molding machined zirconia ceramic parts from wholesalers

    customized precision industrial ceramic injection molding machined zirconia ceramic parts

    Ask Lasest Price
    Brand Name : OEM
    Model Number : 0005
    Certification : SGS ROHS TUV
    Price : USD0.5-20/PCS
    Payment Terms : T/T, Western Union
    Supply Ability : 1000PCS/Month
    Delivery Time : 20-30 days
    MOQ : 1-2pcs
    • Product Details
    • Company Profile

    customized precision industrial ceramic injection molding machined zirconia ceramic parts

    customized precision industrial ceramic injection molding machined zirconia ceramic parts


    We can offer the products base on customer's drawing, sample and other reference parameter

    1) A variety of specifications available.
    2) Satisfy various technical request
    3) High quality be sure
    4) Good insulation performance and high temperature resistance
    5) Bending strength and compressive strength resistance
    6) Used in all electric products and electric heating products
    7) OEM, ODM and OBM are welcomed


    Properties Sheet:

    PropertiesUnits95 Alumina99 AluminaZirconia
    Densityɡ / cm33.653.925.95 - 6.0
    Water Absorption000
    Coefficient of Thermal Expansion10-6 / K7.98.510.5
    Modulus of Elasticity Young’s ModGpa280340210
    Poisson’s Ratio/0.210.220.3
    HV HardnessMpa140016501300 - 1365
    Flexural Strength @ Room TemperatureMpa280310950
    Flexural Strength @ 700℃Mpa220230210
    Compressive Strength@Room TemperatureMpa200022002000
    Fracture ToughnessMpa * m½3.84.210
    Heat Conductivity @ Room TemperatureW / m * k18 - 2526 - 302.0 - 2.2
    Electrical Resistivity @ Room TemperatureΩ*mm2 / m>1015>1016>1015
    Max Application Temperature150017501050
    Resistance to Acid Alkaline/HighHighHigh
    Dielectric Constant/9.59.826
    Dielectric StrengthKV / mm1622/
    Thermal Shock ResistanceΔ T ( ℃ )220180 - 200282 - 350
    Tensile Strength @ 25℃Mpa200248252

    Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, 200T isostatic pressing and extrusion productive technology etc.
    MaterialUnitSteatite ceramics95% alumina ceramics99.5% alumina ceramics
    DensityG/cm32.73.73.9
    Highest application temperature°C110015001750
    Bending strengthMpa150300340
    Compressive strengthMpa90034003600
    HardnessHV0.580018002000
    Insulation breakdown strengthKV/mm101518
    Processing technology
    Process range (mm)
    Outside Diameter1---300
    Inside Diameter0.5---300
    Length0.5---1200
    Accuracy of working (mm)
    Perpendicularity0.01
    Concentricity0.01
    Roundness0.005
    Straightness0.005
    Parallelism0.01
    Planeness0.005
    Roughness0.05
    Fit clearance0.005

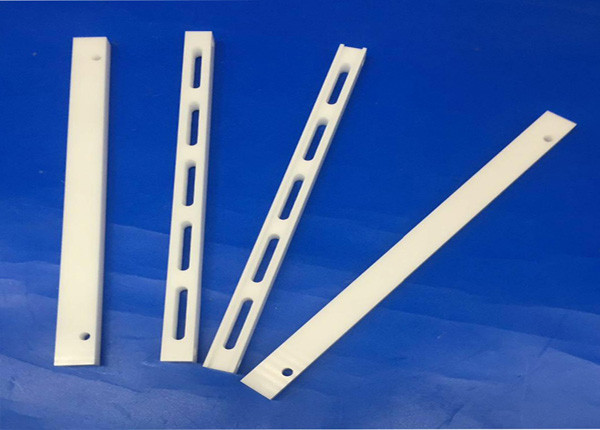

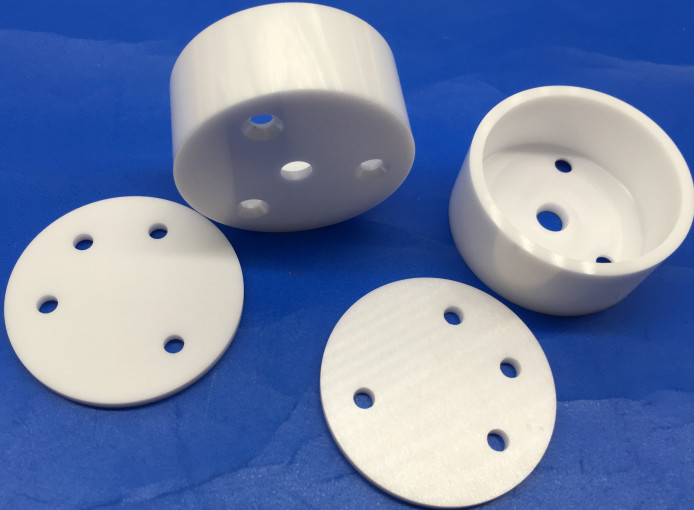

    Product show


    customized precision industrial ceramic injection molding machined zirconia ceramic parts


    customized precision industrial ceramic injection molding machined zirconia ceramic parts


    customized precision industrial ceramic injection molding machined zirconia ceramic parts


    customized precision industrial ceramic injection molding machined zirconia ceramic parts


    customized precision industrial ceramic injection molding machined zirconia ceramic parts


    The related products
    customized precision industrial ceramic injection molding machined zirconia ceramic parts


    customized precision industrial ceramic injection molding machined zirconia ceramic parts


    customized precision industrial ceramic injection molding machined zirconia ceramic parts


    customized precision industrial ceramic injection molding machined zirconia ceramic parts


    customized precision industrial ceramic injection molding machined zirconia ceramic parts


    Factory Introduction

    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are factory.

    Q: How long is your delivery time?

    A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

    Q: Do you provide samples ? is it free or extra ?

    A: Yes, we could offer the sample

    Q: What is your terms of payment ?

    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
    If you have another question, pls feel free to contact us as below:


    white color customized 95% purity precision high wear resistance zirconia ceramic rods

    Machine
    ZrO2 95% advanced high precision white ceramic zirconium Oxide Ceramic rod


    Package and shipping

    Insulators will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.
    Shipped by Express ( DHL, TNT, UPS, Fedex, EMS ), Air, or Sea transportation.

    high precision customized advanced industrial ceramics zirconia parts ZrO2

    high precision customized advanced industrial ceramics zirconia parts ZrO2

    Welcome to contact for the quotation, 2D/3D drawing will be perfect !
